EPDM Gaskets

EPDM Gaskets

EPDM gaskets are most often specified for their ozone resistance. If your gasket will be out doors and exposed to Temperatures between -20 F and 220 F it's a great choice.

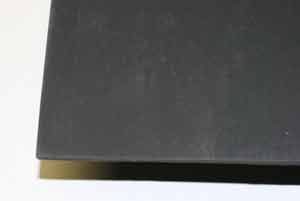

Description: Ethylene Propylene Diene Monomer (EPDM): Gaskets EPDM is a black plate finish sheet with superior resistance to weathering, ozone and UV exposure. EPDM gaskets provide excellent chemical resistance*, and good electrical properties. EPDM gaskets resists animal and vegetable oils, steam, water and oxygenated solvents. This material meets ASTM D-2000-2BA specifications.

High grade material including Mil-specification is available. EPDM Gaskets are also available in a white FDA approved material.

Typical EPDM gasket Specifications:

Excellent resistance to UV rays and ozone. Good resistance to Anti-freeze, Synthetic Detergents, Acetone, Boric acid, Ethanol, Formaldehyde, Mercury, Potassium Sulfate, Silver Nitrate, Steam (up to 212 Fahrenheit), Saccharin. For EPDM's gasket materials compatibility with your specific medium please contact American Seal & Packing.

We cut gaskets from EPDM sheet gasket material to produce EPDM gaskets. Gaskets cut from 1/32", 1/16", 1/8", 3/16" and 1/4" using EPDM Material.

Not oil resistant.  Tensile strength of 800 PSI. Durometer 60 +/-5.
Temperature range: -20F to 220F.

When it comes to cutting EPDM Gaskets there are several ways to get the job done. Traditional "clicker presses" are great for larger quantity jobs and have been the standard in the industry for years. The biggest down side to using clicker presses is tooling must be made to produce a gasket. Just as CNC lathes revolutionized the machining industry, laser cutters, routers and water jet are all computer controled ways of cutting a gasket with out the need for tooling or dies.

Specialized sealing products like EPDM Gaskets, Grafoil® flexible graphite, FKM, Ameri-lon®, Kalrez®, Chemrez®, and more common materials for cut gaskets like: PTFE, filled PTFE, FKM, Viton®, silicone, rubber, buna, cork, fish paper, vegetable fiber, and non-asbestos Cut Gaskets.

If you have a cut gasket application that requires more than traditional solutions, let our team of cut gasket professionals help.

American Seal & Packing Cuts Gaskets of all types, Including: EPDM, PTFE, compressed non-asbestos, vegetable fiber, beater add, cork, and various rubbers - Nitrile, Buna-N, SBR, EPDM, FKM, Hypalon, natural rubber, closed cell, open cell, Neoprene, Flexible Graphite and other "soft goods". EPDM Gaskets can be cut based on your drawing or sample of the gasket you desire. Basic I.D x O.D shapes can be cut by hand however most gaskets require a die. Gasket materials are available in rolls or on pallets depending on type and quantity.

Call us directly or order EPDM gaskets & materials online today!
American Seal & Packing (714) 593-9780
